Wholesale Accept OEM 3mm/5mm/8mm Diffused RGB Mini 50w LED Diode 1.8v-2.2v

FOB Reference Price:Get Latest Price
US $0.0079-0.0085 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SH
Model Number:
3mm/5mm
Type:
LED
Package Type:
Through Hole
Max. Forward Voltage:
3V
Max. Reverse Voltage:
5V
Max. Forward Current:
30mA
Max. Reverse Current:
10mA
Product name:
uv led 365nm
Electyostatic discharge:
2000V
Wavelength:
365-410nm
Power Dissipation:
120W
Item:
Materials
Resin:
Epoxy
Lens Color:
Colorless.
Lead Frame:
Ag plating ironwork Alloy
Dice:
AlGaInP
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Month uv led 365nm
Packaging & Delivery
Packaging Details

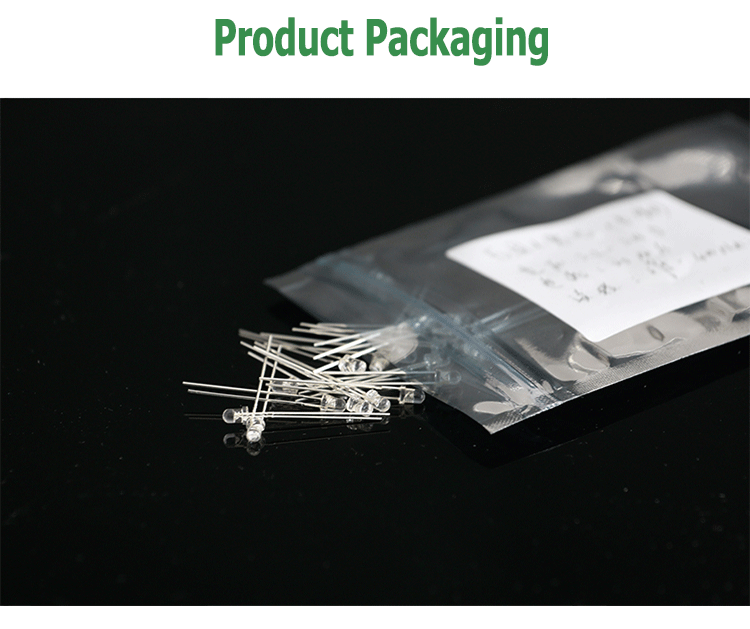

UV led diode in Common packing
Port
ningbo port



Product Description
F3 .jpg

Absolute Maximum Rating(Ta = 25℃)

ItemMaterials
ResinEpoxy
Lens ColorColorless
Lead FrameAg plating ironwork Alloy
DiceAlGaInP
 SymbolAbsolute maximum RatingUnit
Items
Forward CurrentIF30mA
Peak Forward Current* IFP100mA
Reverse VoltageVR5V
Power DissipationPD120mW
Electyostatic dischargeESD2000V
Operation TemperatureTopr-30 ~ +85
Storage TemperatureTstg-40 ~ +100
Lead Soldering Temperature*TsolMax 260°C for 5 sec Max

 Initial Electrical/Optical Characteristics    (Ta=25℃)



itemsymbolconditional valueMin.Typ.Max.Unit
forward currentVFIF = 20mA3.2---3.4V
reverse currentIRVR = 5V------10μΑ
wave lengthWdIF=20mA395---400nm
luminanceIvIF=20mA50------100mcd
visual angle2θ½IF =20mA8090100deg





Price Terms



FOB Ningbo/ShanghaiCNFCIF,EXWSHAOXING,etc. Normally the price will be valid for 20 days. But may subject to currency exchange influence.

Sample Terms

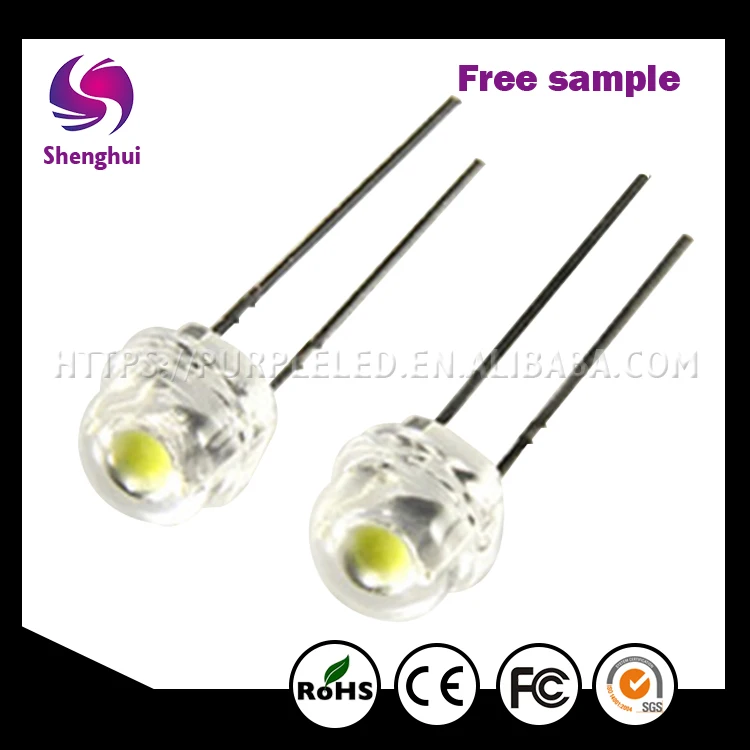

· 1 pc Free Sample can be sent but your need pay the freight.





· Sample fee: $50.00 for custom design(it can be refunded after order confirmed)





· Sample time: Within 7 working days after sample charge received





· Sample delivery: By UPS,DHL,FedEx,TNTetc with 3-5 working days.







Why Choose Us





Certification





FAQ

Q1:Which Payment Means Do You Accept?
A1:We Accept L/C,T/T,Western Union Etc, And Bank Will Charge Some Restocking Fee.



Q2:How Do I Order Products?
A2:Contact Your Customer Manager Or Email To Them. Then We Will Reply For You Within 30mins.



Q3:Who Will Deliver My Order?
A3:Items Will Be Shipped By Sea Or By Air.We May Use Other Carriers As Necessary If You Need.



Q4:How Long Will It Take For My Item To Reach Me?
Please Note That Business Days,Excluding Saturday,Sunday And Public Holidays,

A4:Are Calculated In Terms Of Delivery Period.In General,It Takes About 2-7 Work Days For Delivery.



Q5:How Do I Track My Shipment?
A5:We Ship Your Purchase Before The End Of The Next Business Day After You Have Checked-Out.We Would Send Email With Tracking Number, So You Can Check The Progress Of Your Delivery At The Carrier’S Web Site.



Further information:

Please advise size, logo and other detail information, which will help us a lot to offer a quick and accurate quotation.

PS:

1.You Will Get High Quality Product And The Best Services

2. We Can Provide OEM For Every Client As Long As You Need,We Will Try Our Best To Meet You Requirements
