ShengHui Professional Made 3w 1w White LED High Power Led

FOB Reference Price:Get Latest Price
US $0.14-0.16 / Pieces | 10000 Piece/Pieces 3w white high power led (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
High Power LED
Model Number:
High Power
Chip Material:
Other
Emitting Color:
Cool White, Violet
Luminous Intensity:
180
Luminous Flux(lm):
180-220
Optical Attenuation(%):
0.0001, 0.0001
Power:
1-3W
Power Dissipation:
0.3
Viewing Angle(°):
140
Color Rendering Index(Ra):
80
Color Temperature:
6000-7000K
Operating Temperature(℃):
40 - 100
Storage Temperature(℃):
40 - 80
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SH
Certification:
CE, RoHS, CE, RoHS
Name:
High Power Led
Lead Soldering Temperature:
260℃ for 5Seconds
Operating Temperature Range:
40-80℃
Storage Temperature Range:
40-100℃
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pc In Box (17.5cm*17.5cm*11cm), 24pcs In Carton (55.5cm*37.5cm*48cm)
Port
ningbo port/shanghai port
Lead Time :
7 days

{0BB12DE1-EF12-46B0-BB5F-5330F622569B}

Description of product



Part No:  XCHP-PLB-ANWA-P   Spec No:  XC11112701
Absolute Maximum Ratings at Ta=25℃:
ParameterMaximumUnit
Power Dissipation3000mW
Peak Forward current1200mA
(1/10 Duty Cycle,0.1ms Pulse Width)
Continuous Forward Current1000mA
Reverse Voltage5V
Operating Temperature Range40to+ 80℃
Storage Temperature Range40to+ 100℃
Lead Soldering Temperature260℃ for 5Seconds
[1.6mm (0.63”)from body]
Electrical/Optical Characteristics at Ta=25℃
ParameterSymbolTest ConditionMinTypMaxUnit
Luminous IntensityΦVIF=1000mA140-180lm
Color Rendering X0.3-0.33
Index Calculation Y0.29--0.33
Recommend Forward CurrentIF(rec)----1000mA
Viewing Angle2θ1/2 140 deg
Forward VoltageVF3.2 4.2V
Peak WavelengthλD--- ----nm
Reverse CurrentIRVR=5V--5--µA

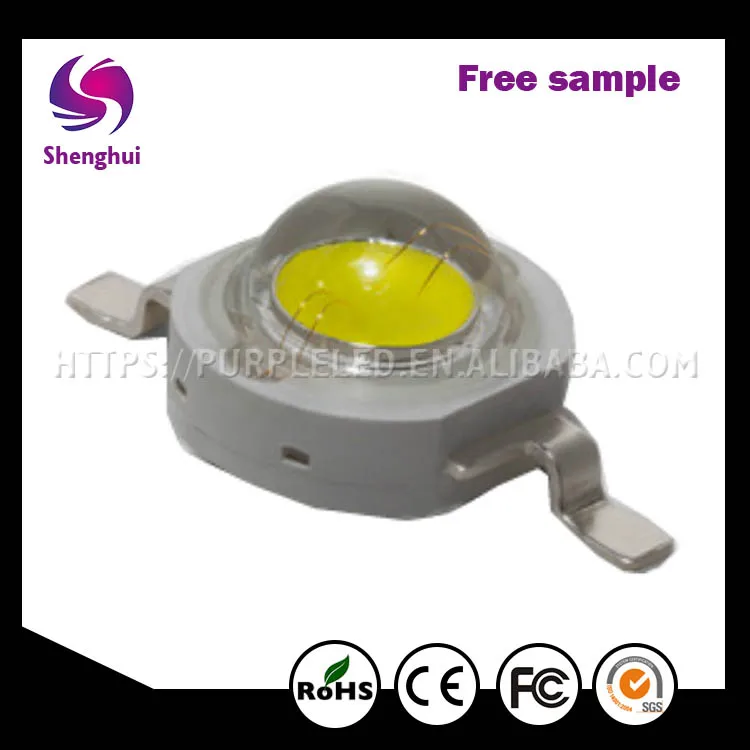

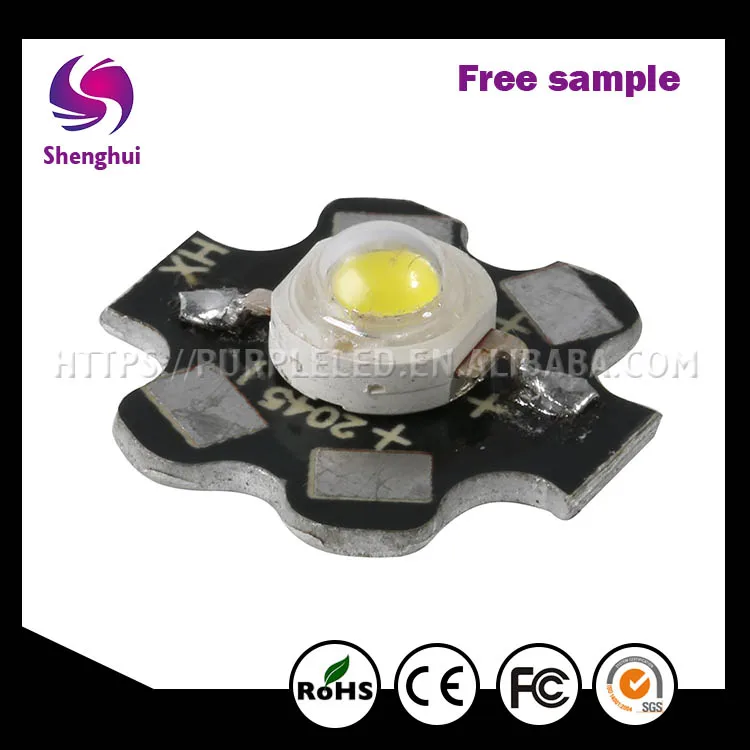

Picture of product

Details:







USE METHOD


1.All dimensions are in millimeters.
2.Tolerance is ±0.25mm unless otherwise noted.
3.Protruded resin under flange is 1.6mm max.
4.Lead spacing is measured where the leads emerge from the package.
5.Specifications are subject to change without notices.



Price Terms



FOB Ningbo/ShanghaiCNFCIF,EXWSHAOXING,etc. Normally the price will be valid for 20 days. But may subject to currency exchange influence.

Sample Terms

· 1 pc Free Sample can be sent but your need pay the freight.





· Sample fee: $50.00 for custom design(it can be refunded after order confirmed)





· Sample time: Within 7 working days after sample charge received





· Sample delivery: By UPS,DHL,FedEx,TNTetc with 3-5 working days.
