High brightness 3V Emitting Diode 1210 smd led SMT surface mount smd 3528 led

FOB Reference Price:Get Latest Price
US $4-6 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SH
Model Number:
SH-SY-5050
Type:
LED
Package Type:
Surface Mount
Max. Forward Voltage:
3.8V
Max. Reverse Voltage:
5V
Max. Forward Current:
20MA
Max. Reverse Current:
20MA
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Common packing
Port
ningbo port
Lead Time :
Samples within 3 days, Within 1-2 weeks base on quantity



Product Description

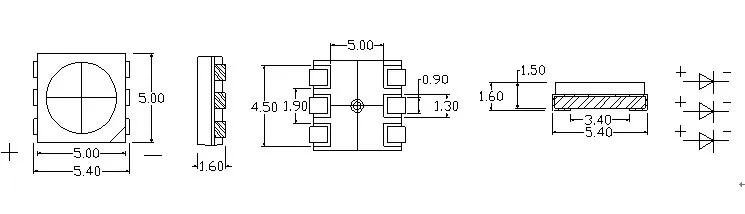

  Dimensional drawing






Raw materials

1.led silicone(Brand:Shin Etsu silicone Dao Kangning)

2.Copper Bracket

3.Gold Line

4.Chip: Japan imports

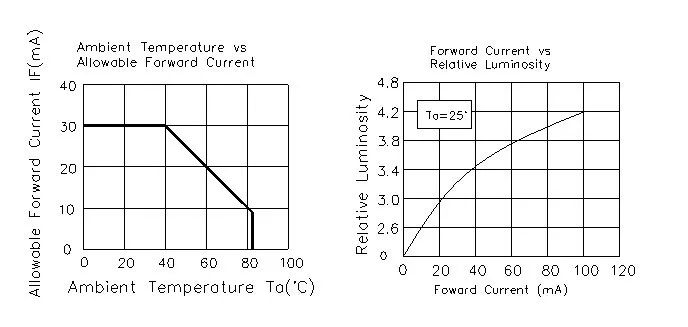

Opto-Electronical Characteristic






Product Overviews

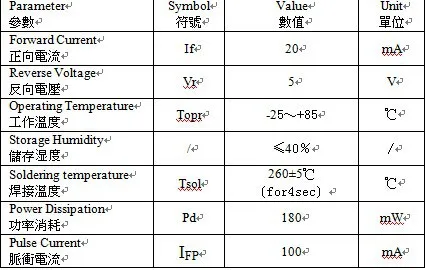

  Absolute maximum ratings

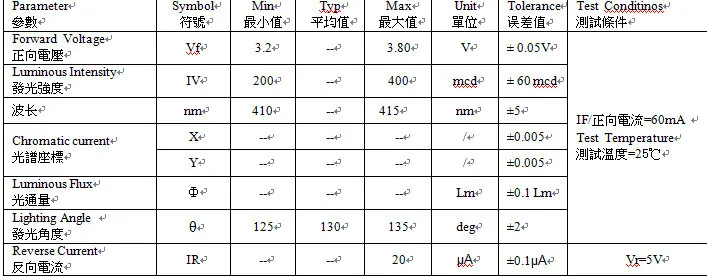

Opto-ElectronicalSpecification


Opto-Electronical Grading Specification




Packaging & Shipping
