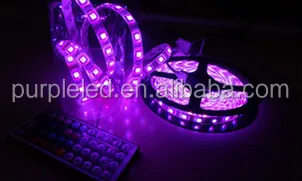

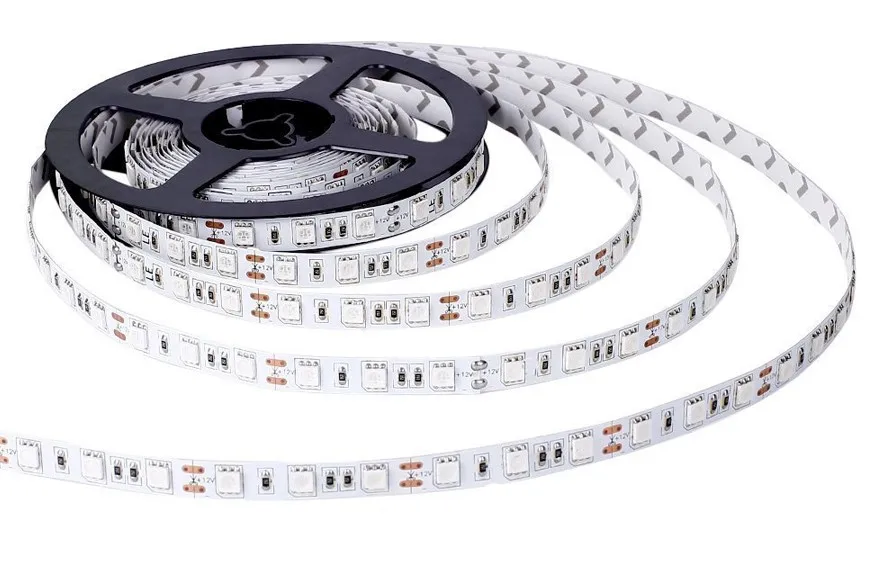

Guaranteed quality proper price rgb led strip light,led light strip

FOB Reference Price:Get Latest Price
US $1-10 / Meter | 10 Meter/Meters rgb led strip light (Min. Order)
Supply Ability:
10000000 Piece/Pieces per Month rgb led strip light
Port:
ningbo port
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD3528
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Lamp Power:
200mw
Lamp Luminous Flux(lm):
18-20lm/led
CRI (Ra>):
80
Color Temperature(CCT):
2700-7000K
Working Temperature(℃):
-25 - 85
Working Lifetime(Hour):
10000
Lamp Body Material:
PVC
Certification:
CE
Emitting Color:
RGB
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SH
Model Number:
SMD LED
Product Name:
led strip light..
Color:
violet
LED Quantity:
60leds/m
Voltage:
Dc12v/dc5v
Packaging & Delivery
Packaging Details

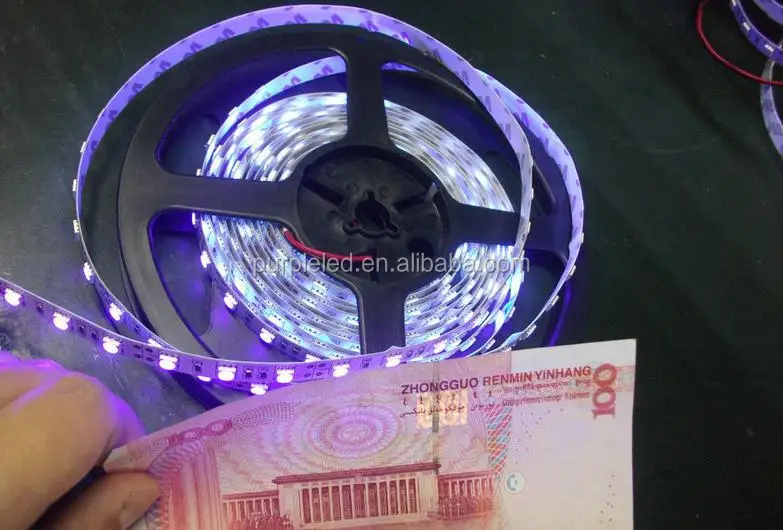

Purple Flexible SMD LED in Common packing





Absolute Maximum Rating at Ta=25

Item

Symbol

Value

Unit

DC Forward Current

IF

20

mA

Peak Forward Current

IFM

100

mA

Reverse Voltage

VR

5

V

Power Dissipation

PD

200

mW

Electrostatic Discharge Threshold(HBM)



Class

Operation temperature

Top

-40~+80

Storage temperature

Tstg

-40~+80

Hot plate welding temperature

Tsol

-40~+80



Note:

ESD(HBM): ClassⅠ:0-1999V  ClassⅡ:2000-3999V  ClassⅢ:4000-8000V



Typical Optical/Electrical Characteristics at Ta=25

Item

Symbol

Condition

Min

Typ

Max

Unit

Forward Voltage

VF

IF=20mA

3.2

3.4

3.6

V

Reverse Current

IR

VR=5V





5

μA

Viewing Angle 2θ1/2



IF=20mA





120

deg

  Wave length

nm

IF=20mA

410



415

nm

Color Rendering Index

Ra

IF=20mA

/



/



Color Gamit

BIN

IF=20mA



Recommend Forward Current

IF(RFC)

IF=20mA





20

mA



Notes:

  1.  Metal Core PCB is mounted on the heat Fins
  2. Tolerance of measurement of forward voltage±0.1V
  3. Tolerance measurement of X/Y±0.01
  4.  Tolerance measurement of luminous intensity/luminous flux±5%
