Hot selling good quality 5mm power led light emitting diode led uv laser lights

FOB Reference Price:Get Latest Price
$0.0079 - $0.0085 / Pieces | 10000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
Package Type:
Through Hole
Max. Forward Voltage:
Max. Reverse Voltage:
Max. Forward Current:
Max. Reverse Current:
Power Dissipation:
Electyostatic discharge:
Reverse Voltage:
Operation Temperature:
Storage Temperature:
Lead Soldering Temperature:
Max 260℃ for 5 sec Max
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
uv straw hat led diode in Common packing
Lead Time :
Samples within 3 days, Within 1-2 weeks base on quantity



Description of product


Absolute Maximum Rating(Ta = 25℃)

Lens ColorColorless
Lead FrameAg plating ironwork Alloy
 SymbolAbsolute maximum RatingUnit
Forward CurrentIF30mA
Peak Forward Current* IFP100mA
Reverse VoltageVR5V
Power DissipationPD120mW
Electyostatic dischargeESD2000V
Operation TemperatureTopr-30 ~ +85
Storage TemperatureTstg-40 ~ +100
Lead Soldering Temperature*TsolMax 260°C for 5 sec Max

 Initial Electrical/Optical Characteristics    (Ta=25℃)


itemsymbolconditional valueMin.Typ.Max.Unit
forward currentVFIF = 20mA3.2---3.4V
reverse currentIRVR = 5V------10μΑ
wave lengthWdIF=20mA395---400nm
visual angle2θ½IF =20mA8090100deg

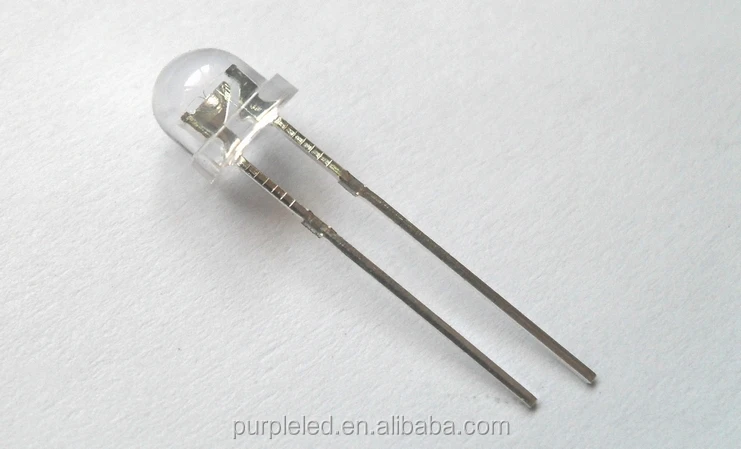

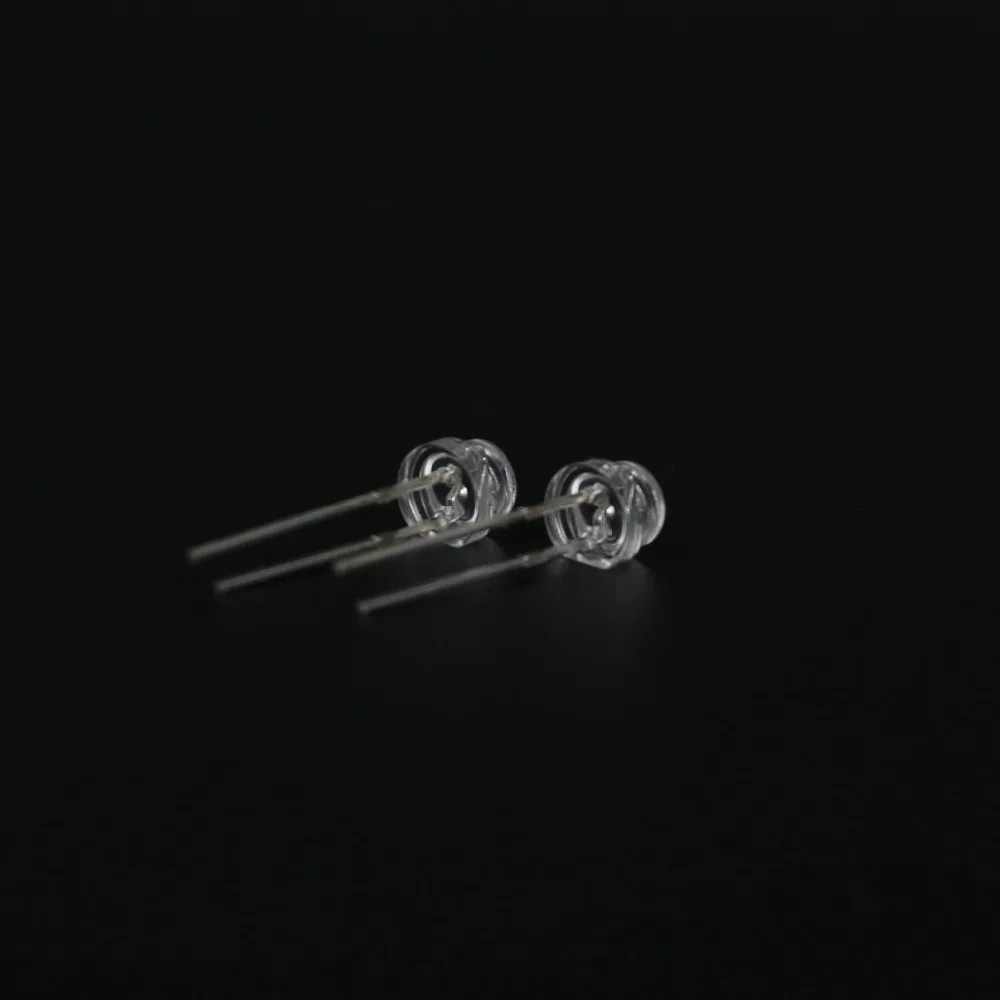

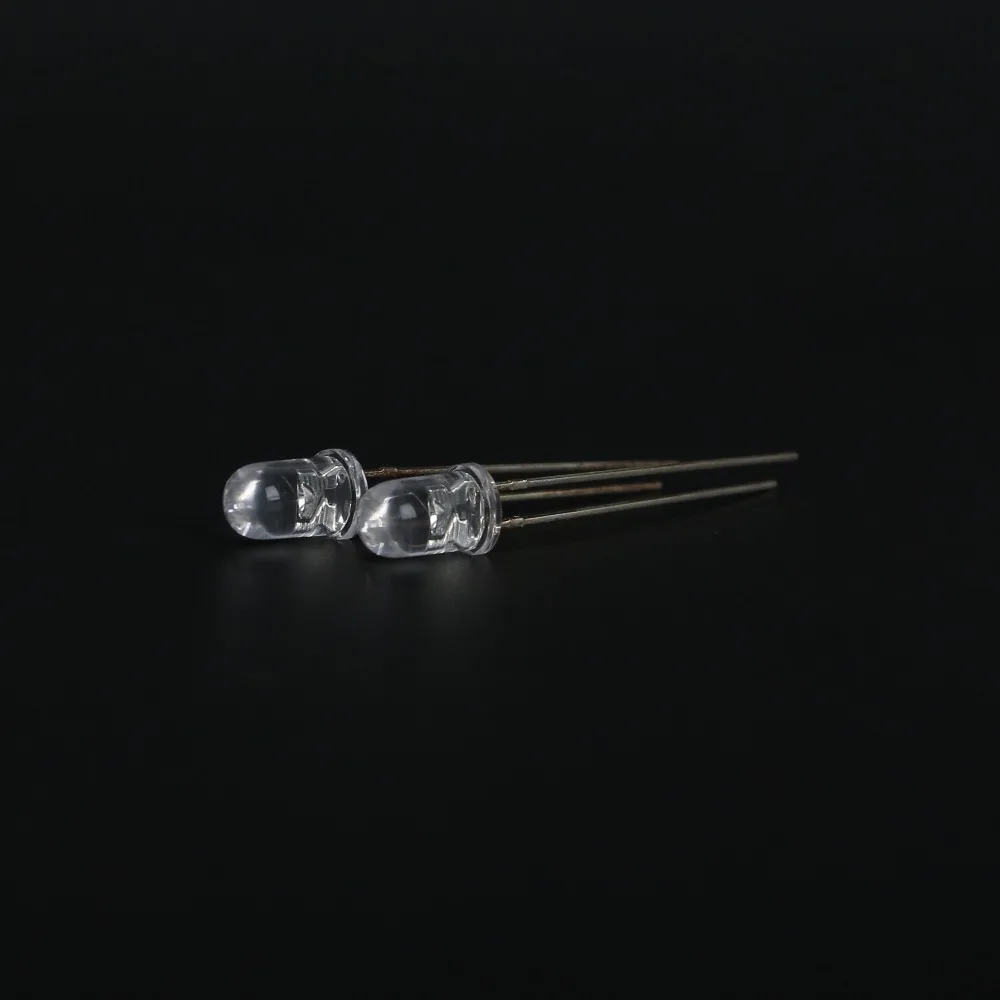

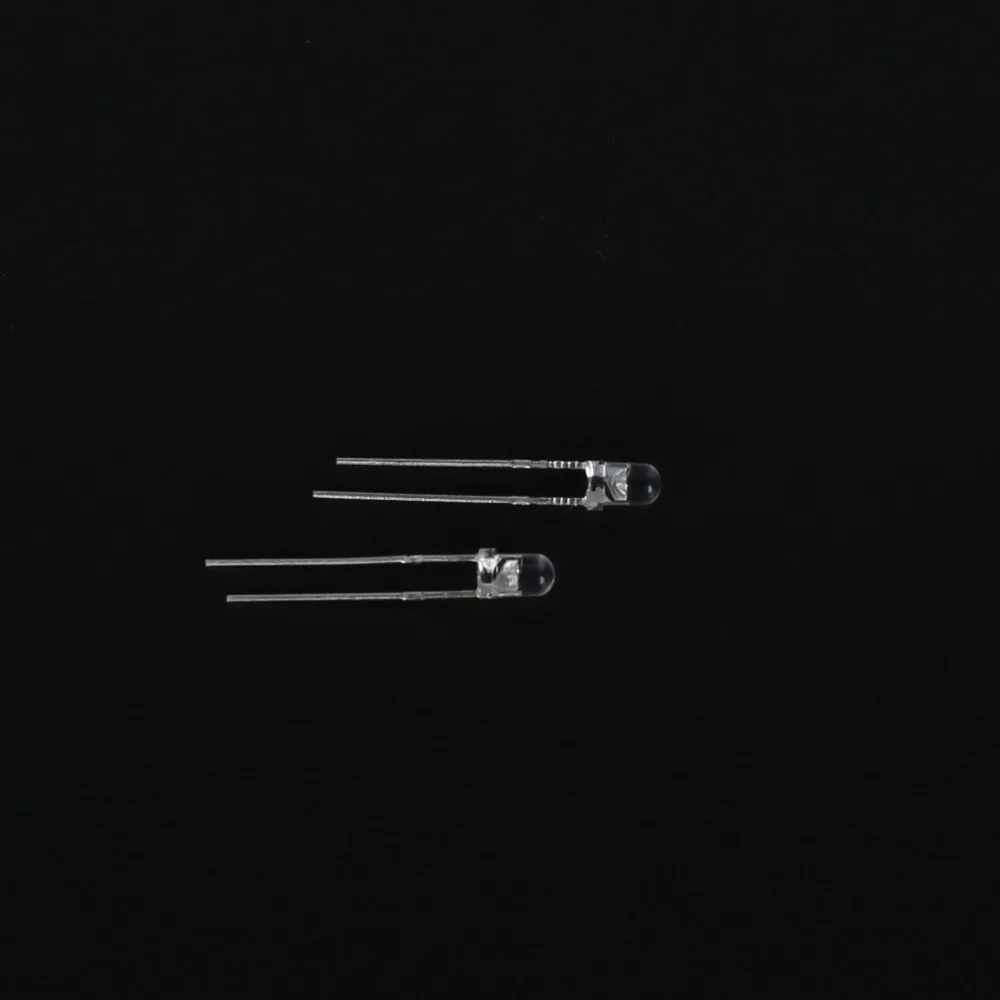

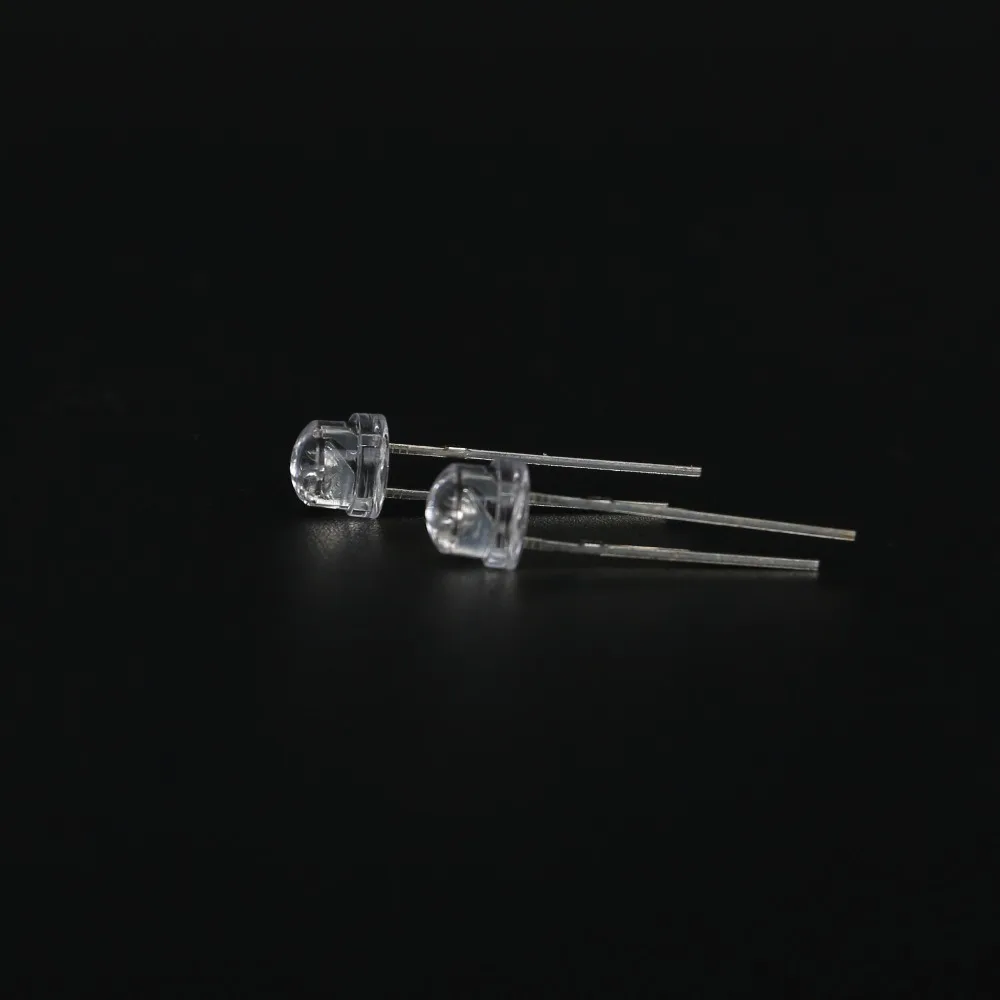

Picture of product




*Refer to reliabiltiy test standard specification for in this line.

TypeTest ItemREF. StandardTest ConditionNoteNumber of Damaged
Environmental SequenceTemperature CycleJIS C 7021-40Þ25Þ100Þ25100 cycles0 / 100
(1977)A-430mins, 5mins, 30mins, 5mins
Thermal ShockMIL-STD-107D-40Þ100100 cycles0 / 100
15mins, 15mins
High Humidity Heat CycleJIS C 702130Þ6510 cycles0 / 100
(1977)A-590%RH   24hrs/1cycle
High Temperature StorageJIS C 7021Ta = 1001000hrs0 / 100
Humidity Heat StorageJIS C 7021Ta = 601000hrs0 / 100
(1977)B-11RH = 90%
Low Temperature StorageJIS C 7021Ta = -401000hrs0 / 100
Operation SequenceLife TestJIS C 7035Ta = 251000hrs0 / 100
-1985IF = 30mA
High Humidity Heat Life Test*60    RH=90%500hrs0 / 100
IF = 20mA
Low Temperature Life Test*Ta = -401000hrs0 / 100
IF = 20mA
Destructive SequenceResistance to Soldering HeatJIS C 7021Tsol = 260±5   , 10sec1 time0 / 20
(1977)A-11(3mm from the base of the epoxy bulb)
SolderabilityJIS C 7021Tsol = 235±5   , 5sec1 time0 / 20
(1977)A-2(using flux)(over 95%)
Lead Pull/Bend TestJIS C 7021Load 2.5N (0.25kgf)No noticeable damage0 / 20
(1977)A-110°Þ90°Þ0°   bend 3 times





1.One normal delivery will include all ranks listed above.

2.The quantity ratio of  the ranks is decided by LaiSuo

3.Measurement Uncertainty of the Luminous intensity : ±15%

4.Measurement Uncertainty of the Dominant Wavelength : ±1.0nm
